Ultra Bright Red Common Cathode Custom Seven Segment Led Display For Refrigerator/Freezer Control

Brand Name : LIGHTBO

Model Number : LB4419-3IUR1B-T0

Certification : ISO:9001&RoHS

Place of Origin : SHENZHEN，CHINA

MOQ : 1000

Price : Negotiate

Payment Terms : TT,Western Union

Supply Ability : 50000pcs/days

Delivery Time : 15-20days

Packaging Details : EPE+Carton

Package Dimensions : 44*19*9mm

Polarity : Common Cathode

Emitting Colour : Red

Display Brightness : Ultra Bright

Digits : 3

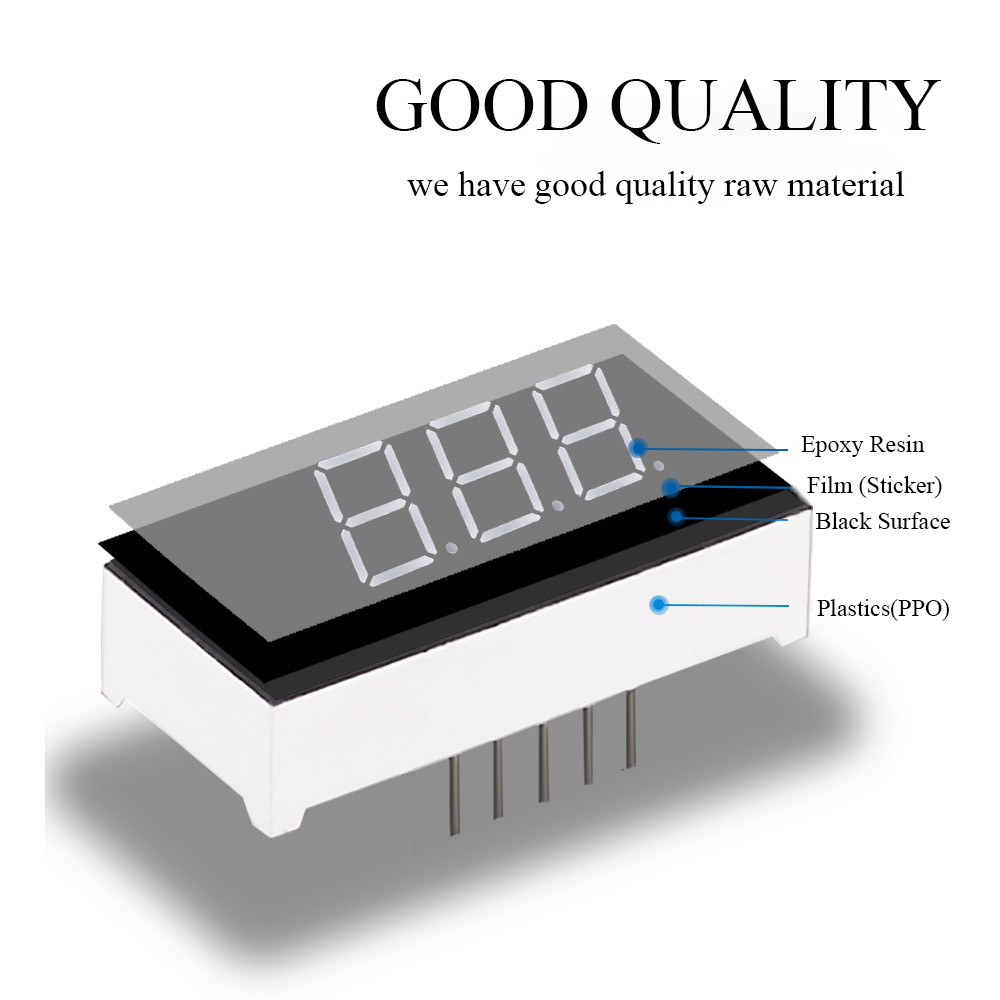

Material : PPO+LED Chip

Usage : Indoor,Outdoor,Indoor/Outdoor

Application : Refrigerator/Freezer

Operating temperature : -40~85 ℃

Life span : 100000hours

Forward Current : 20mA

Contact Now

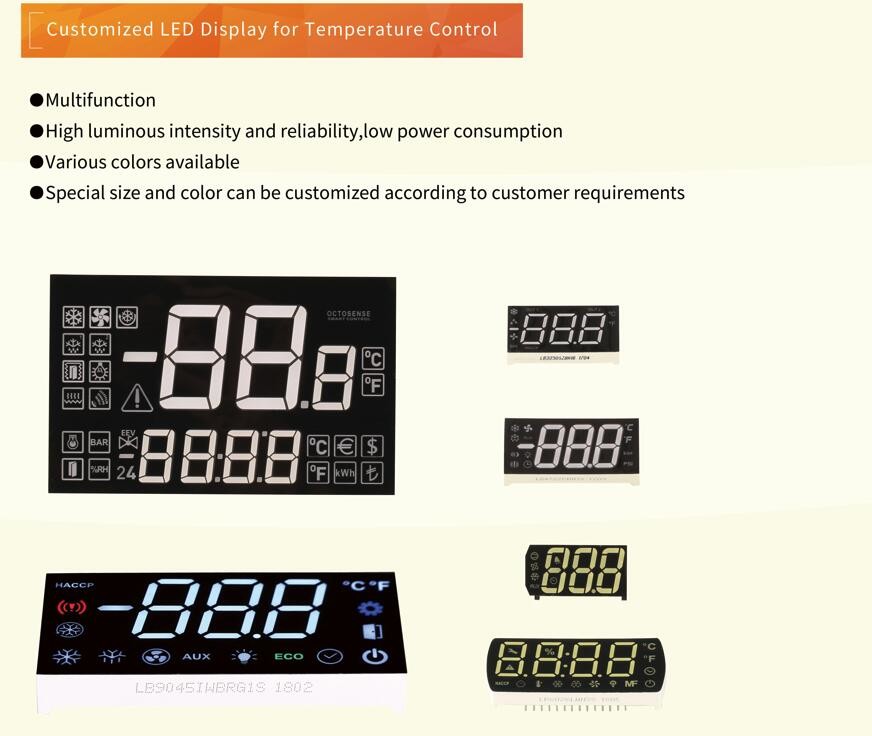

Ultra Bright Red Common Cathode Custom Seven Segment Led Display For Refrigerator/Freezer Control

COLOR:

LED CODE EMITTING COLOUR WAVELENGTH(NM) LUMINOUS INTENSITY(MCD) FORWARD VOLTAGE(V) FORWARD CURRENT(mA)
R SUPER BRIGHT RED 630-635 50-60 1.8-2.2 5-10
UR ULTRA BRIGHT RED 620-625 90-100 1.8-2.2 5-10
J YELLOW GREEN 569-573 30-40 1.8-2.4 5-10
Y YELLOW (AMBER) 585-595 50-60 1.8-2.4 5-10
F ORANGE 600-605 50-60 1.8-2.4 5-10
G PURE GREEN 515-525 120-160 2.5-3.0 5-10
BH(B) BLUE 460-470 100-120 2.6-3.0 5-10
WH(W) WHITE / 120-140 2.6-3.0 5-10

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40～+120 ℃
Storage Temperature Range Tstg -40～+120 ℃
Solder Temperature(3 sec)
Th		 260 ℃

LED working lifetime 100,000hrs, Absolute Maximum Rating at Ta=25℃

Ultra Bright Red Common Cathode Custom Seven Segment Led Display For Refrigerator/Freezer Control

Shipment:
