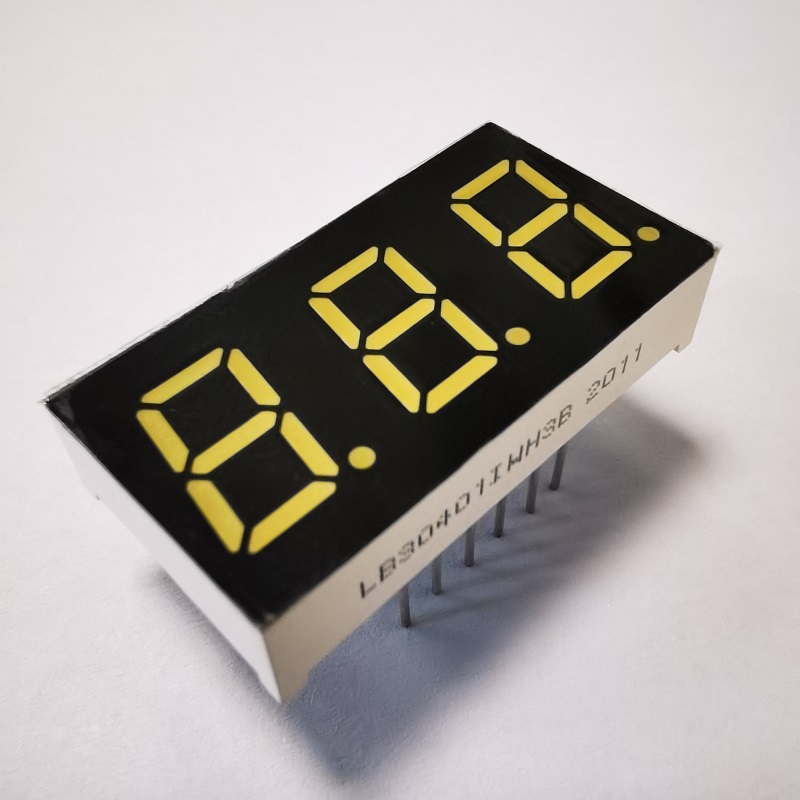

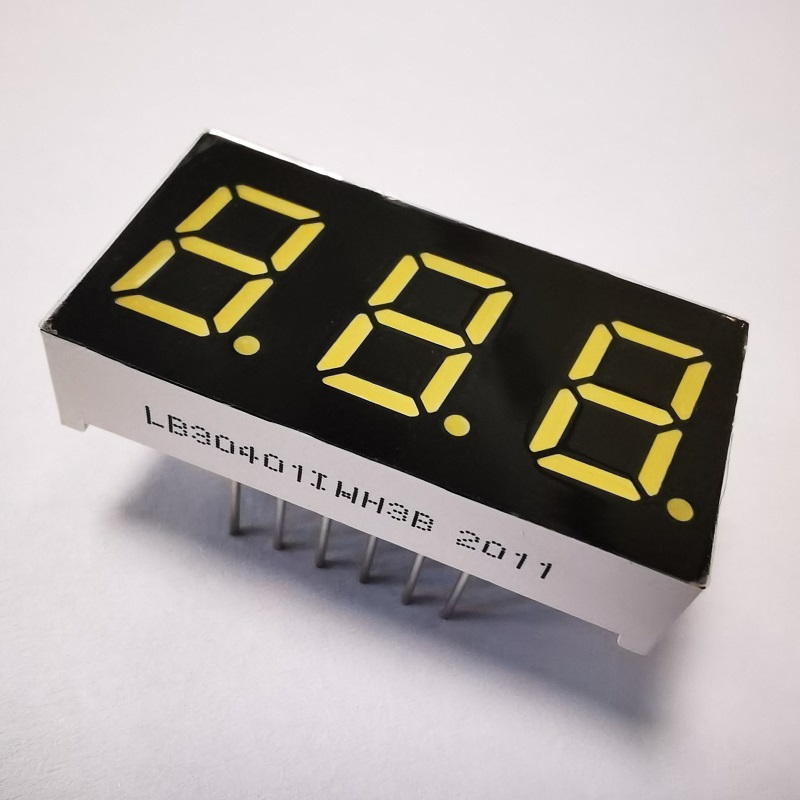

7 Segment LED Display 0.4inch Common Anode Ultra White for Temperature Indicator

Name: 7 Segment LED Display 04inch Common Anode Ultra White for Temperature Indicator
Brand: LIGHT-BO
Price: 1 USD

Quality 7 Segment LED Display 0.4inch Common Anode Ultra White for Temperature Indicator wholesale

Brand Name : LIGHT-BO

Model Number : LB30401IWH3B-D

Certification : ISO9001&RoHS

Place of Origin : SHENZHEN，CHINA

MOQ : 1000

Price : Negotiate

Payment Terms : TT in advance

Supply Ability : 20000pcs/days

Delivery Time : 15-20days

Packaging Details : EPE+Carton

Interface Type : Common Anode

Outer Dimension : 30.1*16*7MM

Brightness : High

Character Height : 0.4"( 10.16mm)

Lifespan : 100,000 Hours

Characteristic : High quality with reasonable price

Contact Now

Product Description:

Character height: 0.4"( 10.16mm)

Outer dimensions: 30.1*16*7MM

Polarity: Common anode
Yellow Epoxy black surface
Ultra bright WHITE

Emitting colours: red, blue, green, white, amber, orange and yellow

Absolute Maximum Ratings(Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(3 sec)	Th	260	ºC

Code:R-Ultra bright white

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=10mA	2.8		3.2	V
Reverse Voltage(Per dice)	Vr	Ir=10uA	5			V
Luminous Intensty(Per dice)	Iv	If=10mA	100		140	mcd
Spectrum With Of Half Value	λ	If=10mA		20		nm
Color Temperature		If=10mA	6000		6500	K
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant

Applications:

Widely used for lift position indicators, elevator floor indicators and display screens,moving signs,message boards,home appliances and so on

7 Segment LED Display 0.4inch Common Anode Ultra White for Temperature Indicator

Product Tags:

Ultra White 7 Segment LED Display

7 Segment LED Display 0.4inch Common Anode Ultra White for Temperature Indicator Images
